Immediate implant placement using the Neo NaviGuide in the maxillary anterior site


Pre-op panorama

It was planned to immediately place implants following the extraction of #11, #13, #22 and #23.



Intra-oral photograph


Intra-oral photograph

Precision Neo NaviGuide were fabricated.


#11 was extracted.


Immediately after the extraction of #11, #22 and #23.


The Neo NaviGuide was placed in the mouth.


Bone trimmer was used removing residual alveolar bone and flattening the bone level.

Ø 2.2 drill (200rpm)


Ø 3.0 drill (50rpm)


Ø 3.5 drill (50rpm)


Neobiotech IS-III active 4.0*13mm fixture was placed in the area of #11.

Fixing the Neo NaviGuide, with vertical anchor (in fixture) connected to the fixture.

Neobiotech IS-III active 4.0*13mm fixture was placed in the area of #23.


#13 was extracted.

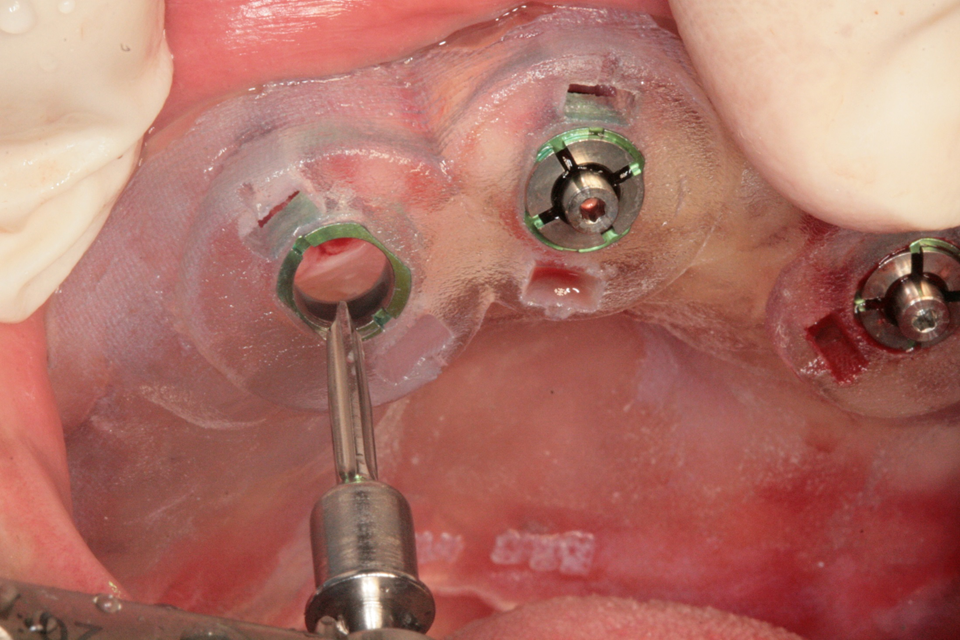

The Neo NaviGuide was placed in the mouth.


Fixing the Neo NaviGuide, with vertical anchor(in fixture) connected to the fixture.

Bone Trimmer (200rpm)


Ø 2.2 drill (200rpm)


Ø 3.0 drill (50rpm)


Ø 3.5 drill (50rpm)


In D1~D2 bone, cortical tap was used for pre-tapping. (30~50rpm)

Neobiotech IS-III active 4.0*13mm fixture was placed in the area of #13.


Removed vertical anchor with a hex driver.

Surrounding bone was trimmed with a bone profile (50rpm). Must use Bone Profile after removing the guide.


3 implants were placed successfully.

Cover screws were connected to the fixtures.

Bone graft was performed.

Healing abutments were connected to the fixtures.



Post-op panorama

Click on the image to see clinical video.
