Full-Arch Rehabilitation Using Multi-Unit Abutments and Same-Day Provisionalization

GAO
2 days ago
2 min read

Updated: 11 hours ago

Case Summary 🔎

Patient Information

Age / Sex: 50-year-old female
Medical History: No relevant systemic disease
Chief Complaint: “My overall dental condition is poor.”
Clinical Diagnosis: Generalized severe periodontitis affecting the remaining maxillary and mandibular teeth

Case Summary

All remaining maxillary teeth were extracted, followed by surgical guide-assisted placement of six implants. Multi-unit abutments were connected, and a 3D-printed resin provisional prosthesis was delivered on the day of surgery.

In the mandible, the existing implants were maintained, the remaining periodontally compromised teeth were extracted, and one additional implant was placed in the mandibular anterior region. Full-arch rehabilitation was completed with a maxillary All-on-6 and mandibular All-on-5 prosthesis.

Case Focus: Guided surgery, All on X, Full Arch, MUA connection, and same-day provisionalization.

Case Presentation

1️⃣Pre-op

Pre o.p panorama

Preoperative intraoral and smile photographs

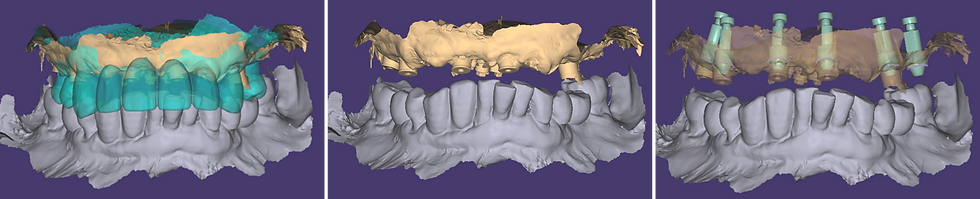

Preoperative intraoral scan data and provisional prosthesis design for immediate provisionalization using exocad.

2️⃣ Maxillary Surgery

Post-extraction intraoral view and surgical guide placement.
Connection of multiunit abutment

#16: ALX-IT Ø5.0 × 10 mm, cuff 3 mm, D332, 40 Ncm
#14: ALX-IT Ø4.5 × 12 mm, cuff 4 mm, D032, 30 Ncm
#11: ALX-IT Ø4.5 × 10 mm, cuff 4 mm, D332, 40 Ncm
#21: ALX-IT Ø4.5 × 10 mm, cuff 4 mm, D332, 40 Ncm
#24: ALX-IT Ø4.5 × 10 mm, cuff 3 mm, D002, 40 Ncm
#26: ALX-IT Ø5.5 × 10 mm, cuff 3 mm, D332, 40 Ncm
Connection of the Scan Bars on the Scan Posts

https://video.wixstatic.com/video/5642c3_b99e500fb5574d67bc933b1d53c79214/1080p/mp4/file.mp4

3️⃣Maxillary Prosthetic

Connection of the scan bar after attaching the Scan Body Kit scan posts.

https://video.wixstatic.com/video/5642c3_09e14589894042f3a89e02184243307c/1080p/mp4/file.mp4

https://video.wixstatic.com/video/5642c3_cb11dbe7501846e69aa3c70d6f4a2d1a/1080p/mp4/file.mp4

Implant position scan data were merged with the soft-tissue scan data to accurately transfer the implant positions and surrounding soft-tissue contours

Virtual Mount of the Maxillary Implant IOS Model

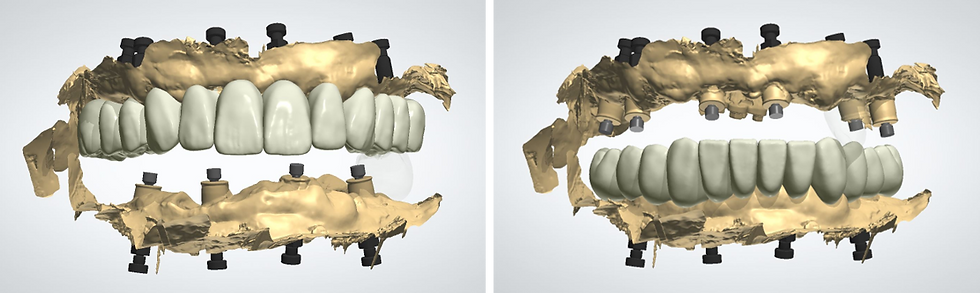

Complete the Provisional Design on the implants

Print the provisional in the dental clinic
Provisional Delivered in 1 Hour After Surgery

3 weeks after surgery

4️⃣ Mandibular Surgery & Pros

Mandibular scan post data and postoperative panoramic radiographic evaluation.
Following extraction of teeth #41–34, a surgical guide was used to place an additional implant at the #32 site, while the existing mandibular implants were maintained.
#32: ALX-BT Ø4.5 × 10 mm, D221, 40 Ncm

Connection of multi-unit abutments and scan posts after removal of the existing mandibular prosthesis.
Mandibular scan post data and postoperative panoramic radiographic evaluation.

Connection of the scan bars to the scan posts, followed by acquisition of the mandibular implant scan data.

Merging the postoperative implant scan data with the preoperative prosthesis design for provisional prosthesis fabrication.

Same-day delivery of the 3D-printed provisional prostheses, followed by intraoral occlusal and extraoral smile evaluation.

Post o.p panorama

Extraoral and intraoral views at the 1-month follow-up after provisional prosthesis removal, showing soft-tissue healing around the maxillary and mandibular multi-unit abutments.
