Immediate Placement and 4-Week Loading at #45 with the ALX Implant and Kit Protocol

Case Summary 🔎

Patient Information

• 38 y/o, Male

• Past Medical History: Healthy




Introduction

A 38-year-old male patient underwent extraction of the retained primary tooth (#85), followed by immediate placement of an ALX implant. An intraoral scan was performed on the day of extraction and implant placement. The implant achieved favorable primary stability with a high IST value, allowing delivery of the definitive prosthesis after only one month. The final restoration was fabricated using the CL-link system, enabling a screw-retained design without the need for a conventional abutment or cementation. This case demonstrates a predictable workflow combining immediate placement, same-day digital impression, early loading, and CL-link–based prosthetic rehabilitation using the ALX implant.

Treatment Plan

1. Extraction of retained primary tooth #85

2. Immediate placement of an ALX implant and same day intraoral scanning

3. Final restoration after 1 month of surgery

4. 1 month FU

Case Presentation

1️⃣Pre-op

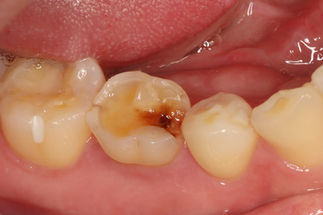

• Preoperative radiograph and intraoral photograph showing decay of tooth #85





• Atraumatic extraction of tooth #85



2️⃣ Surgery

ALX-IT Drill Sequence

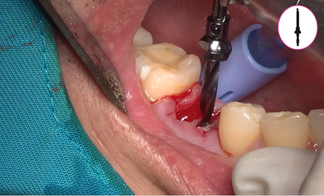

• A point drill was used to mark the ideal implant position.



• A Ø2.5 × 10 mm drill connected with an MD spacer was used to check the mesiodistal distance and perform initial bone preparation.





• Ø3.0 × 10 mm drilling was performed.



• Ø3.5 × 10 mm drilling was performed.






• Final drilling (Ø4.5 × 10 mm) was performed.





• An ALX-IT Ø6.0 × 10 mm, cuff 2mm implant was placed.







• Bone around the fixture was removed using the IT margin profile.





• Bone graft was performed.



• Digital impression obtained using an intraoral scanner







• Healing abutment was connected.







• Implant stability was measured using AnyCheck (ISTV = 84)



• Post operative panorama



• After 2 weeks of surgery, the ISTV remained stable at 83







3️⃣Prosthetic Fabrication

• The prosthesis was fabricated using the IT CL-Link.





4️⃣ Final restoration

• The final restoration was delivered one month after surgery









• PA and panoramic radiographs after final restoration





5️⃣Follow Up

• At the 1-month follow-up, the implant remained stable with healthy peri-implant tissue conditions.
