11-Year Long-Term Success of Full Posterior Implant Rehabilitation in Both Arches

  • Writer: GAO
    GAO
  • 2 days ago
  • 2 min read

Updated: 1 hour ago

11-Year Long-Term Success of Full Posterior Implant Rehabilitation in Both Arches

Dr. Jongyub Kim (Korea)


Case Summary 🔎

This case presents a full posterior implant rehabilitation involving both arches, maintained in stable condition for over 11 years with no significant biological or mechanical complications.


Case Presentation

1️⃣ Diagnosis

Chief Complaint (C.C)

  • The patient reports difficulty using the anterior teeth and long-term neglect of the posterior dentition.


Diagnosis

  1. Severe caries in the maxillary anterior region, affecting esthetics and function.

  2. Multiple posterior teeth are either missing or remain as root remnants in both arches, indicating long-term neglect.

  3. Generalized chronic periodontitis with associated alveolar bone loss.


Treatment Plan

  1. #14, 15, 17, 24, 25, 26, 27, 35, 36, 37, 46, 47 Extraction

  2. #14, 24, 35, 36, 37, 45, 46, 47 Implant placement

  3. #16, 17, 26, 27 Implant placement and sinus graft

  4. Maxillary anterior endodontic treatment and prosthetic

  5. Mandibular posterior supra-eruption requiring bone reduction

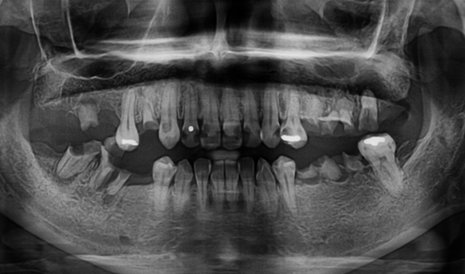

2️⃣ Pre-Op

  • Alveolar bone reduction was indicated due to supra-eruption in the posterior region following prolonged tooth loss.

  • Generalized severe dental caries involving anterior and posterior teeth.


3️⃣ Surgical Phase

04 July 2012

  • After #46, 47 extraction


13 July 2012

  • #45, 46 Implant placement and autogenous bone graft

  • Bone reduction was performed to correct mandibular posterior supra-eruption.

#45, 46 Implant placement and autogenous bone graft

Tooth Number

Implant Size

Insertion Torque

#45

IS2 4.0*10mm

40 Ncm

#46

IS2 4.5*10mm

30 Ncm

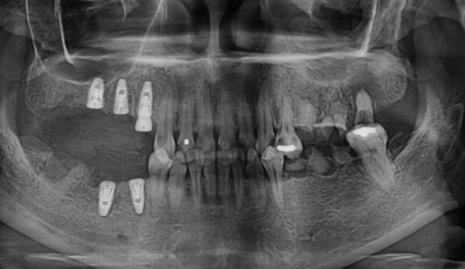

20 July 2012

  • #14 Implant placement

    #15 Extraction and immediate placement

    #16 Implant placement with sinus graft

Tooth Number

Implant Size

Insertion Torque

#14

IS2 4.0*10mm

40 Ncm

#15

IS2 4.0*10mm Sinus graft - SCA 9mm

20 Ncm

#16

IS2 5.8*8mm Sinus graft - SCA 8mm (Class 2 Fixation)

40 Ncm


01 August 2012

  • #35, 36, 37 Implant placement and autogenous bone graft

  • Bone reduction was performed to correct mandibular posterior supra-eruption.

Tooth Number

Implant Size

Insertion Torque

#35

IS2 4.0*8mm

40 Ncm

#36

IS2 5.0*10mm

40 Ncm

#37

IS2 4.5*10mm

30 Ncm

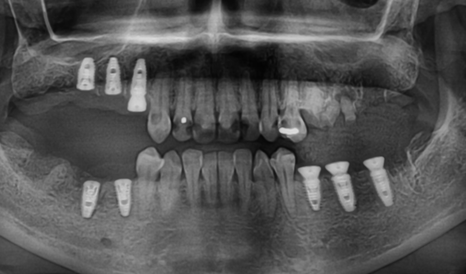

04 September 2012

  • #24, 25, 26 Extraction and Immediate placement with bone graft

  • Bone graft material: Autogenous + Ti oss 0.1cc

#24, 25, 26 Extraction and Immediate placement with bone graft

Tooth Number

Implant Size

Insertion Torque

#24

IS2 4.0*10mm

15 Ncm

#25

IS2 4.5*10mm

35 Ncm

#26

IS2 4.5*10mm

15 Ncm


01 November 2012

  • #14 Implant remove and replacement, undersize drilling

  • #47 Implant placement

  • Bone graft material: SureOss 0.5cc + Lyoplant

#14 Implant remove and replacement, undersize drilling / #47 Implant placement

Tooth Number

Implant Size

Insertion Torque

#14

IS2 4.5*10mm

10 Ncm

#47

IS2 4.5*10mm

30 Ncm (D2-3 bone)


4️⃣ Prosthetic Phase

28 December 2012

  • #35, 36, 37 Final prosthesis delivery


20 March 2013

  • #45, 46, 47 Final prosthesis delivery


30 April 2013

  • #24, 25, 26 Final prosthesis delivery


27 May 2013

  • #14, 15, 16 Final prosthesis delivery


21 June 2013

  • Maxillary anterior final prosthesis restoration

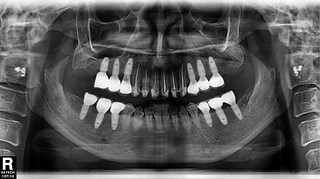

5️⃣ Follow-Up

05 November 2014

Panoramic radiograph

09 November 2015

Panoramic radiograph

02 February 2017

Panoramic radiograph

08 August 2018

Panoramic radiograph
Periapical radiograph

15 March 2024

Panoramic radiograph
Periapical radiograph

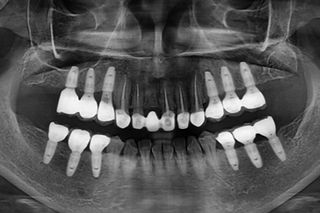

6️⃣ Result

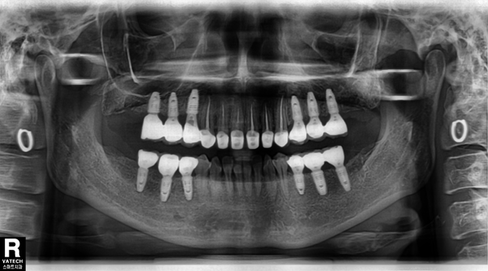

June 2013 & June 2024
