Various Implants Placement using Neo NaviGuide System


Case 1

Implant Placement using the Neo NaviGuide in the maxillary 2dn Premolar Area


Pre-operative photograph



Surgical Report



Surgical guide application



Implant placement by surgical stent



Healing abutment (No suture)



Bite tray impression using Pick cap



Implant crown restoration (SCRP type)



A panoramic radiograph after the final delivery of the prosthesis





Case 2

Immediate Implant placement using the Neo NaviGuide in the left mandibular 1st Molar



Pre-extraction panorama



Surgical Report



Implant placement surgical guide

(Post extraction 2 weeks later Implant placement because of buccal spaced abscess, betadine staining of stent)



Exact Implant positioning in inter-septal bone using guide stent



Additional bone graft using xenograft



Wide healing abutment




Implant crown restoration (SCRP type)



A panoramic radiograph after the final delivery of the prosthesis





Case 3

Multiple teeth replacement with the Neo NaviGuide on the right maxillary and mandible using the SCA technique in the maxillary 1st molar area


#16,46 Surgical Report



Surgical guide application



#16 Implant placement after sinus elevation using SCA




Vertical anchor in fixture





#16 Implant placement after sinus elevation using SCA




Bone profile



Healing abutments



Implants placement after bone anchor



Transmucosal GBR after mandibular 4 Implants placement



Impression using Pick caps




Implant prosthesis restoration (SCRP type)





Case 4

Full arch Implantation with the Neo NaviGuide on the edentulous maxillary and mandible



1st visit panorama

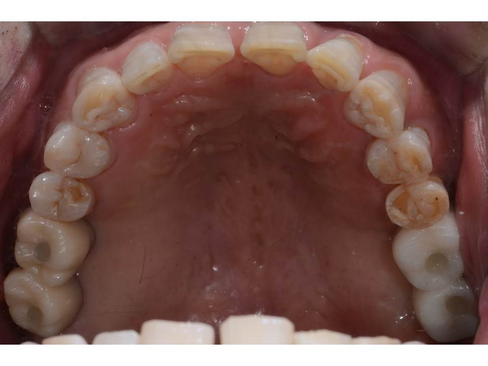

1st visit intraoral view



Pre-operative intraoral view



Surgical Report



Surgical guide fixation after teeth extraction




IST check by AnyCheck




Loading by provisional restoration (2weeks after Implants placement)



Final restoration (SCRP type)



Night guard using 060 wafer



A panoramic radiograph after the final delivery of the prosthesis
